Why Choose LED Display:
A. High brightness: rich and colorful, the only large display device that can be used outdoors all day long;
B. Long life: up to 100,000 hours (ten years) or more;
C. Large viewing angle: greater than 160 degrees;
D. Modular structure: the screen area can be adjusted by specific requirement. It can be as small as one square meter, and also as large as several hundred or thousands of square meters;
E. Easy to be compatible with computer interface, rich support software , easy and flexible operation, clear and stable picture presentation.
F. Display network: One computer can simultaneously control multiple displays to play different content. And the display can also work offline. Furthermore, it can display both text and graphic images, the fonts are richly varied as well.
KING STAR Series
Standard Outdoor LED Display Solution
USE Nationstar SMD3535/SMD1921 led lamp and 960x960mm Die-casting cabinet
Product Specification
Pixel Pitch(mm) | P8 MM |
Pixel Density(dot/㎡) | 15625(dot/㎡) |
Brightness | 5500cd/㎡ |
LED module size （W * H） | 320MM（W）* 160MM（H） |
module Resolution（W * H） | 40dots * 20dots |
Pixel configuration | SMD3535 |
Drive IC | high refresh rate |
Cabinet size (W*H) | 960MM ×960MM |
Cabinet Resolution | 120dots * 120dots |
Viewing Angle(V/H) | 140 ºC/140 ºC |
Screen Power Consumption | Average:260w/㎡ |
Input Voltage | AC110V/220V±10% |
weight | 32KG/cabinet |
Operating Temperature | -20ºC~+60ºC |
LED Lifetime | >100,000 Hours |
MTBF | > 50000 hours |
Refresh Rate | 1920HZ |
Control Method | Nova-star / linsn |
maintenance | back or front |
Function and Technology Character
(1) Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are comprehensive, and also we have three display mode as VGA+VIDE and VGA. There are also interfaces for Sound signal and video signal.
(2) 65536 grade grey control system and the color is over 16.7 millions, and the brightness, contrast, saturation, chroma can be adjusted by manual and sensor, whose scope is 256 grade.
(3) Show all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously
(4) Line-Double technology is adopted for the picture adjustment.
(5) Can be connected with PC and the web net and show the content, and also can be controlled remotely via VPM+ADSL.
(6) Can be used outdoor in all kinds of weather, and excellent capability of antisepsis, waterproof.

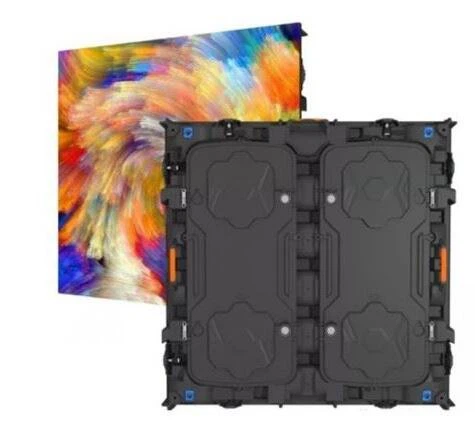

Cabinet :
LED module
Product introduce :
P8mm LED Billboard Screen Display offers more flexibility and significantly shortens installation and alignment time, it is rugged, IP65+ rated waterproof and dustproof solution that deliver high-resolution images with unequalled brightness and contrast levels. This high-performance P8mm LED advertising billboard digital LED display is designed for outdoor fixed installation in 24*7 hours operating brandings and advertisings video display and generates the perfect picture at all times, even in direct sunlight.
P8mm fixed installation large LED screen wall billboard display delivers excellent advertisement images and videos visual effect with white balance, more than 5500 nits brightness
1920 Hz refresh rate, high grey scale, brightness auto-adjustment capability (Multiple-function card-Light sensor), it is the best solution for outstanding and best digital-out-of-home advertising billboard applications.
Ultra Wide Viewing Angle
Both 160° from horizontal & vertical for the viewing angle.
Seeing from five directions, it would be still the natural and clear image in an LED display.
Installation type
Product packing

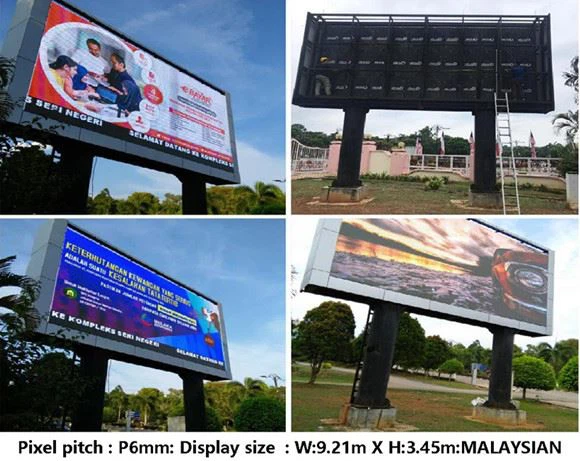

Product Application Cases:
