Features
Our Outdoor SMD Circular Screen P4.68 is a cutting-edge display solution that combines superior technology and durable construction to elevate your visual experiences.
High-Quality LED Screen:
This product adopts a high-quality LED screen, ensuring exceptional visual performance. The display showcases vibrant and clear images with a wide range of colors, allowing you to present various patterns and content that will undoubtedly attract and engage customers. Whether it's advertising, entertainment, or information dissemination, this screen guarantees an outstanding viewing experience.
Durable and Weatherproof Exterior:
The exterior of the Outdoor SMD Circular Screen P4.68 is crafted using high-quality materials, which grants it excellent waterproofing, rust resistance, and oxidation resistance. This robust design enables the screen to withstand harsh weather conditions, ensuring its longevity and reliability, even in challenging outdoor environments.
Reliable Surface Treatment:
To further enhance its durability, we employ various surface treatment methods to safeguard the outermost layer from any potential issues. This advanced approach prevents the screen from falling off, cracking, or fading, maintaining the screen's stunning visual output over time. You can count on this circular screen to sustain its striking appearance, providing long-lasting and reliable performance.
Wide Temperature Range:
The Outdoor SMD Circular Screen P4.68-1R1G1B operates efficiently within an impressive temperature range of -20 ℃ to 60 ℃. Whether it's the scorching heat of summer or the freezing cold of winter, this screen remains undeterred, ensuring its peak performance regardless of the weather. Its adaptability to extreme temperatures makes it suitable for various outdoor settings and ensures uninterrupted operation all year round.
Product Parameter
| No. |
Project Name |
Technical Parameters |
| 1 |
Pixel composition |
1 Red 1 Green 1 Blue LED (SMD1921) |
| 2 |
Pixel pitch |
4.68mm |
| 3 |

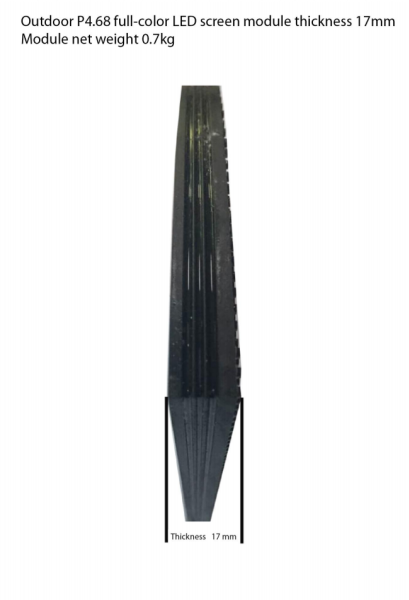

Module size |
300mm*300mm |
| 4 |
Module resolution |
64X64 |
| 5 |
LED chip |
3 scan |
| 6 |
LED Packaging manufacturers |
crystal table |
| 7 |
display density |
45511 dots/㎡ |
| 8 |
Maximum White Balance Brightness |
≥4000cd/㎡ |
| 9 |
gray scale |
Red, green, blue each ≥ 256 levels, up to 65536 levels |
| 10 |
display color |
≥16.7M species, up to 281 trillion species |
| 11 |
Out of Control Points |
≤ten thousandth |
| 12 |
Best line of sight |
≥7M outside |
| 13 |
Viewing angle |
Vertical： ≥120°Horizontal≥120° |
| 14 |
Device driver |
1/8 scanning |
| 15 |
Dimming |
256 Level software adjustment, 16 level automatic adjustment |
| 16 |
frame rate |
≥60HZ |
| 17 |
refresh rate |
≥1920HZ |
| 18 |
control method |
Nova asynchronous |
| 19 |
Waterproof grade and material |
IP65， Module potting glue adopts transparent glue |
| 20 |
Screen life |
≥100,000 Hours. |
| 21 |
Continuous working time |
＞72 Hour |
| 22 |
MTBF |
＞1,000 h |
| 23 |
Operating Voltage |
AC 220V±15%， 50Hz±2 Hz |
| 24 |
Ambient temperature and humidity |
temperature： -20℃~+60℃， humidity： 10%-95% |
| 25 |
Power Consumption (Max/Average) |
400W left/right/table |
| 26 |
Flatness |
Between adjacent images ≤ 0.5mm; module splicing gap ≤ 0.5mm |
| 27 |
maintenance method |
Former maintenance |
| 28 |
Screen weight |
≤18Kg/PCS |
| 29 |
Uniformity |
The light intensity of the pixel and the module are uniform, and each pixel can be corrected at a single point |
| 30 |
switching power supply |
5V/40A (Siqi power supply) |
| 31 |
Control System Wooden box |
wireless |
| 32 |
packing one drag one |
1070*1010*220mm 34KG |
Why choose us
Our flagship product, the Outdoor SMD Circular Screen P4.68-1R1G1B, sets a new standard in the world of outdoor displays. Its circular design allows for seamless installation on the exterior walls of various establishments, making it an ideal choice for shops, supermarkets, coffee shops, and any other location seeking to maximize its visibility and reach.
A Canvas of Unlimited Creativity
At the heart of the Outdoor SMD Circular Screen P4.68 lies its high-quality LED screen, capable of showcasing an array of captivating patterns and content. From store logos to letters, characters, and graphics, the possibilities are virtually limitless. This freedom of expression enables businesses to highlight their brand, display enticing offers, and create eye-catching visuals that draw in passersby and potential customers alike.
Attracting Customers with Visual Excellence
The impact of powerful visuals cannot be understated, especially in today's visually driven world. Our Outdoor SMD Circular Screen P4.68-1R1G1B excels at presenting content with exceptional clarity and vibrant colors, ensuring that every message conveyed leaves a mark on the audience. The ability to display dynamic and attention-grabbing content plays a pivotal role in attracting foot traffic and turning it into loyal patrons.
Unmatched Durability and Reliability
We understand that outdoor displays face numerous challenges, from harsh weather conditions to wear and tear. That's why we've designed the Outdoor SMD Circular Screen P4.68 with durability in mind. Built using premium materials, this display is weatherproof, ensuring its resilience against rain, wind, and other environmental factors. The robust construction guarantees reliable performance, minimizing downtime and maximizing its lifespan.
Enhancing Store Visibility and Identity
In today's crowded market, it's essential for businesses to distinguish themselves from their competitors. The Outdoor SMD Circular Screen P4.68 empowers establishments to do just that. By prominently showcasing their logos, brands, and other visual content, businesses can enhance their visibility and identity in their local communities. This targeted marketing approach helps in creating a strong brand recall, ensuring customers remember and return to the store.
Partner with Us for Unparalleled Outdoor Display Solutions
As a leading manufacturer of Outdoor SMD Circular Screen P4.68, we take pride in our commitment to excellence. Our team of skilled professionals is dedicated to delivering top-notch products that meet and exceed our clients' expectations. Whether you need a single screen for a small shop or a comprehensive installation for a large retail chain, we have the expertise and resources to cater to your unique requirements.
